3HP Spindle DRO Turret Milling Machine 1000mm X Axis Travel 4530rpm

Name: 3HP Spindle DRO Turret Milling Machine 1000mm X Axis Travel 4530rpm
Brand: RATEE
Price: 1 USD

Quality 3HP Spindle DRO Turret Milling Machine 1000mm X Axis Travel 4530rpm wholesale

Brand Name : RATEE

Model Number : 5EA

Certification : ISO 9001:2015

Place of Origin : CHINA

MOQ : 1 SET

Price : NEGOTIATION

Payment Terms : TT/LC

Supply Ability : 1000 SETS/YEAR

Delivery Time : NEGOTIATION

Packaging Details : WOODEN PALLTES / WOODEN CASE

Table size : 1370*280*90

X/Y/Z axis travel : 100/385/340

Max distance from spindle nose to table : 470

Spindle rotation speed : 66-4530rpm(50HZ)

DRO : Optional accessories

Dimension : 1600*1800*2200

Net weight : 1750kgs

OEM service : Yes

Contact Now

Product Characteristics:

1. Taiwan parts assembled in China

2. Spindle tolerance: 0.005mm

Parameters Sheet:

Model			5EA
Table size		mm	137028090
Travel (Longitude X)		mm	1000
Travel (Crossward Y)		mm	385
Travel (Vertical Z)		mm	340
Travel of spindle quill		mm	127
Max distance from spindle nose and table		mm	470
Spindle Rotation speed	Step speed milling head	50HZ	66-4530
		60HZ	80-5440
	Variable speed milling head	50HZ	40-3125
		60HZ	503750
	Inverter speed milling head	50HZ	0-4200
		60HZ	0-4200
Spindle taper			NT40
Spindle rated motor			5HP
Tilt angle (Forward and backward)			±45°
Tilt angle (Left and right)			±90°
Dimension		mm	160018002200
Net weight		kg	1750

Standard Accessories:

Working light'; Way cover; R8/3HP spindle Taiwan parts step speed milling head; NT40 inch draw bar; Technical document; Accompanied toolbox.

Optional accessories:

1. NT milling chuck

2. M12 clamping kits/ M16 clamping kits

3. 6' vise/8' vise

4. 2 axis/3 axis DRO

5. X axis power feed or Y axis power feed

Overview:

3HP Spindle DRO Turret Milling Machine 1000mm X Axis Travel 4530rpm

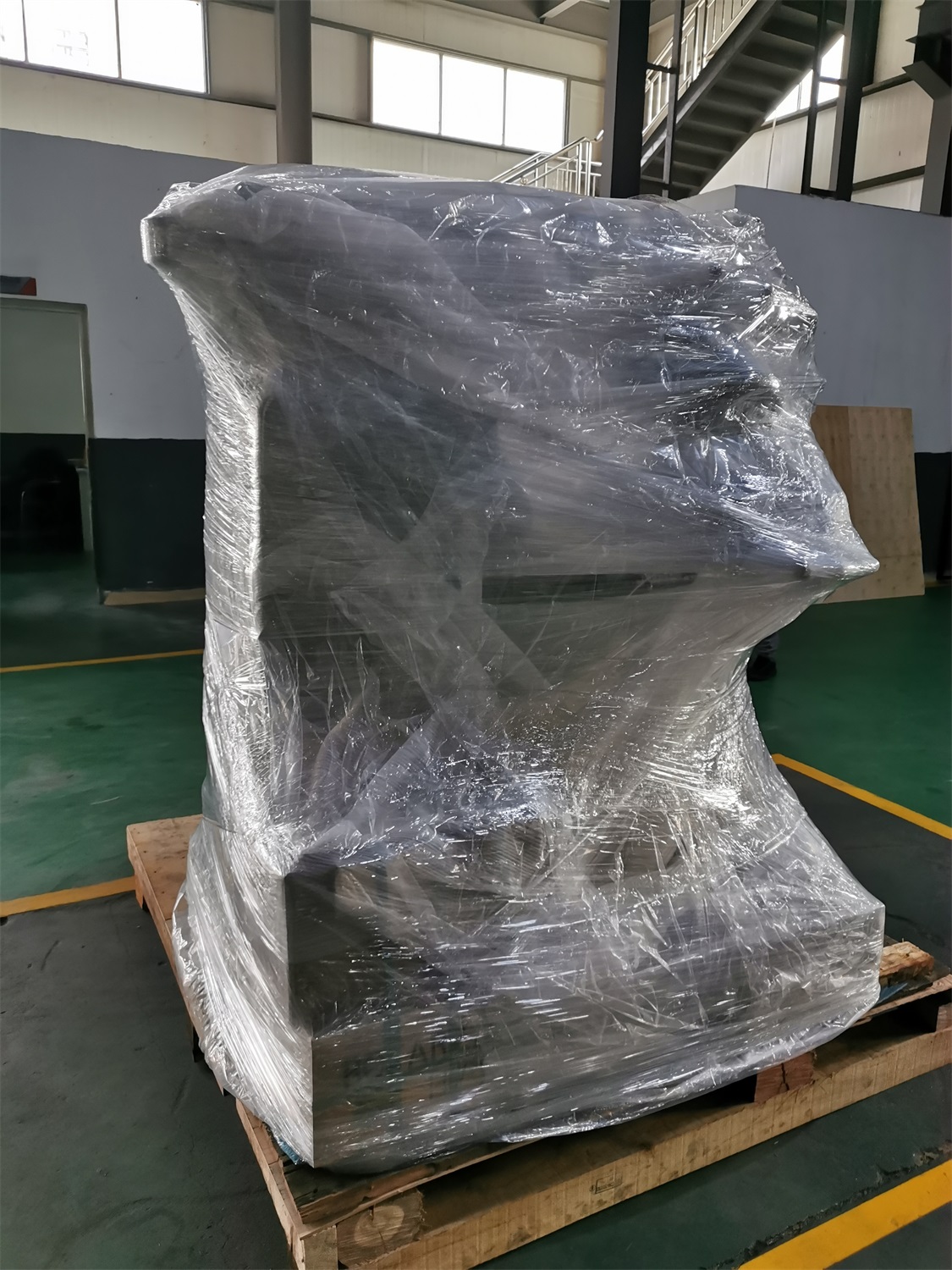

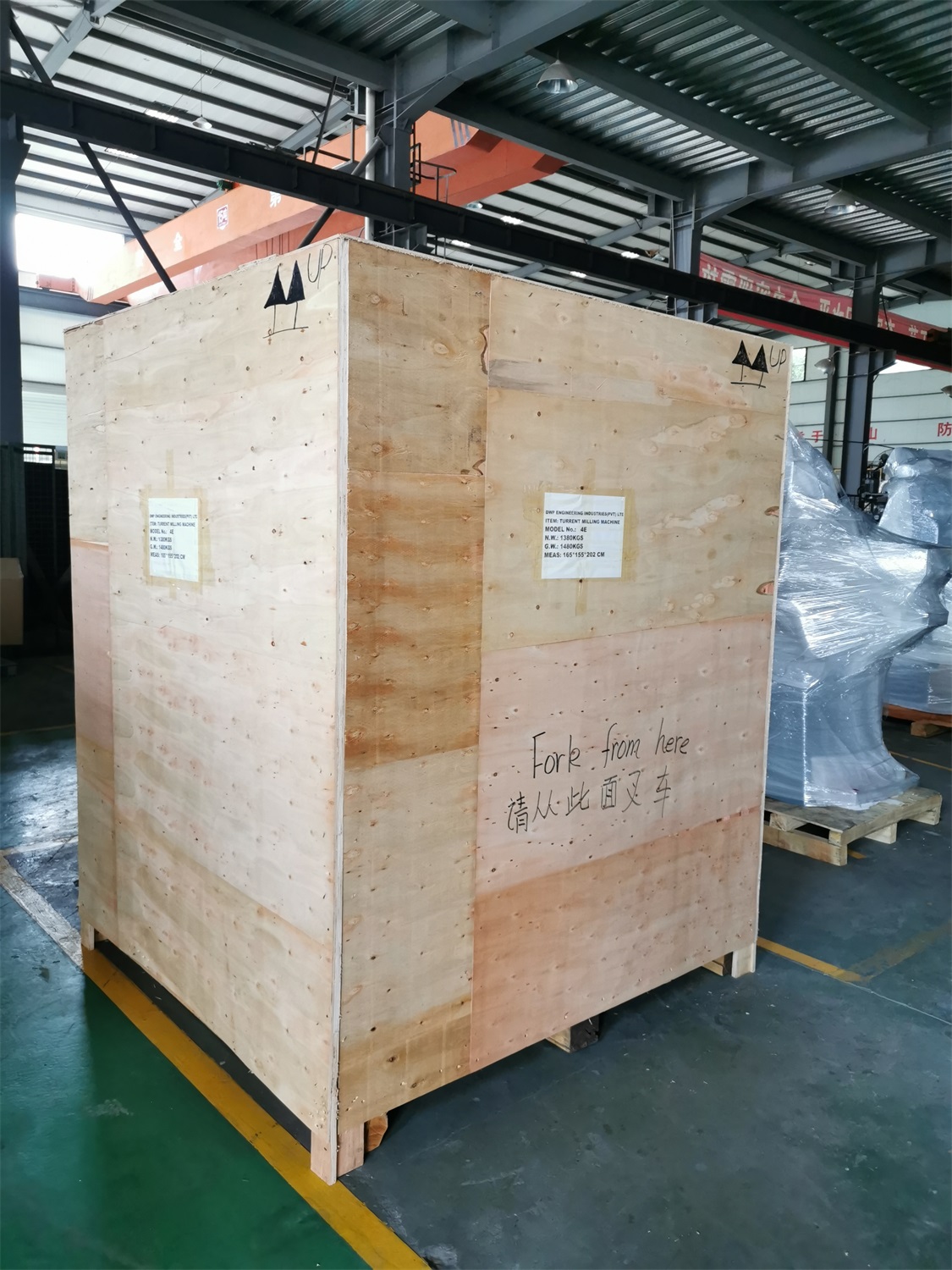

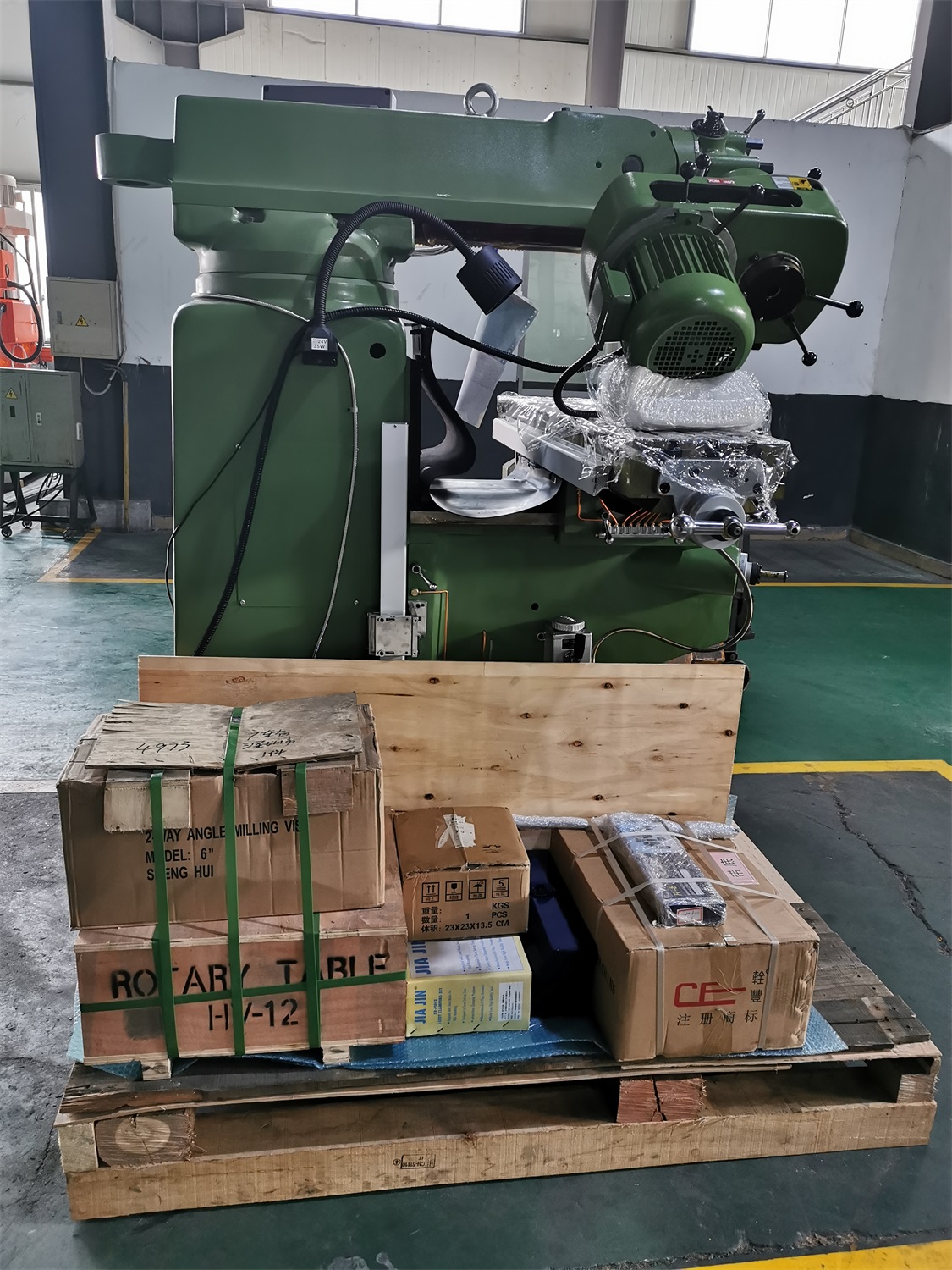

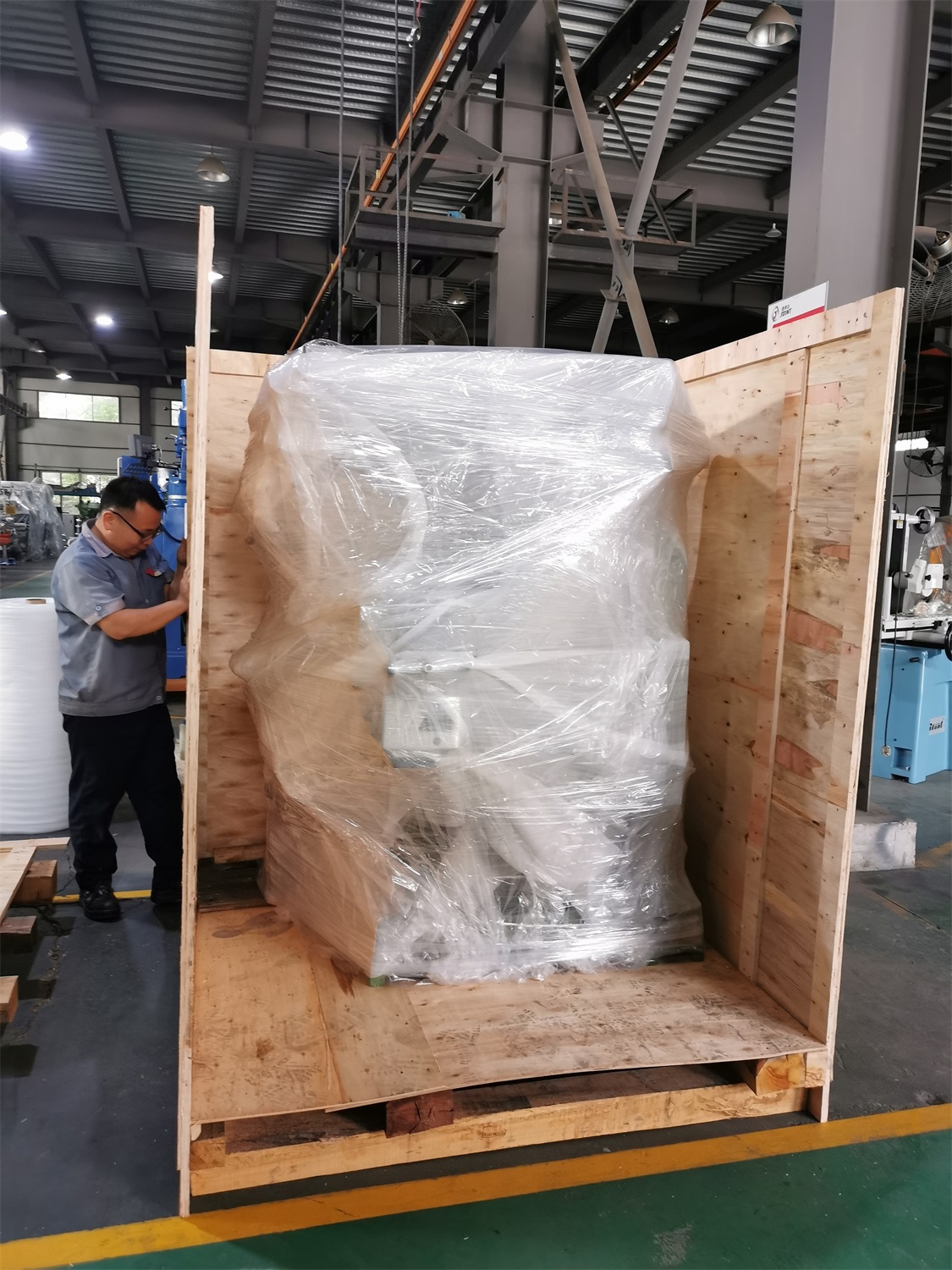

Package:

Product Tags:

3HP Spindle Turret Milling Machine

DRO Turret Milling Machine

4530rpm Cnc Milling Machine

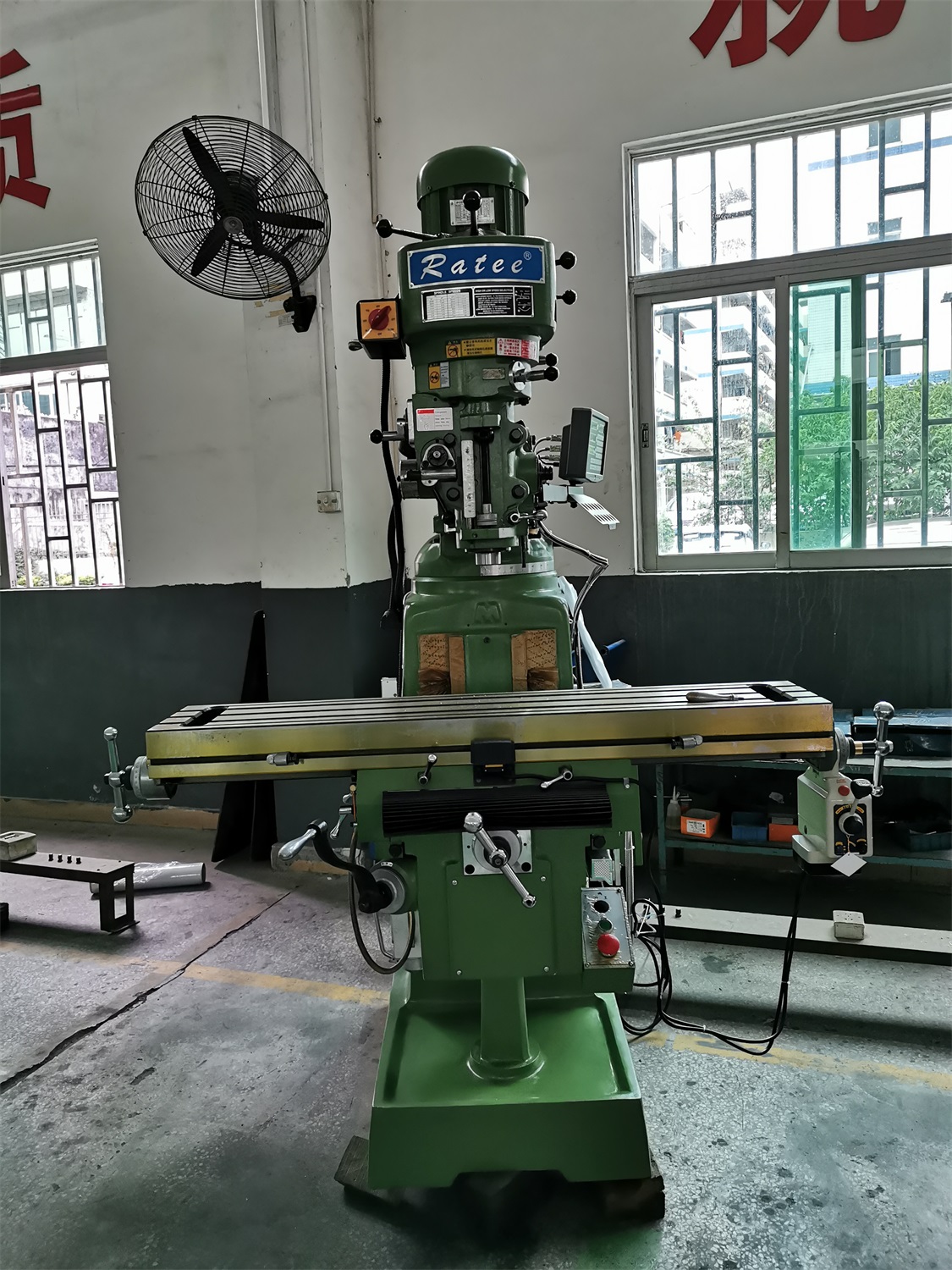

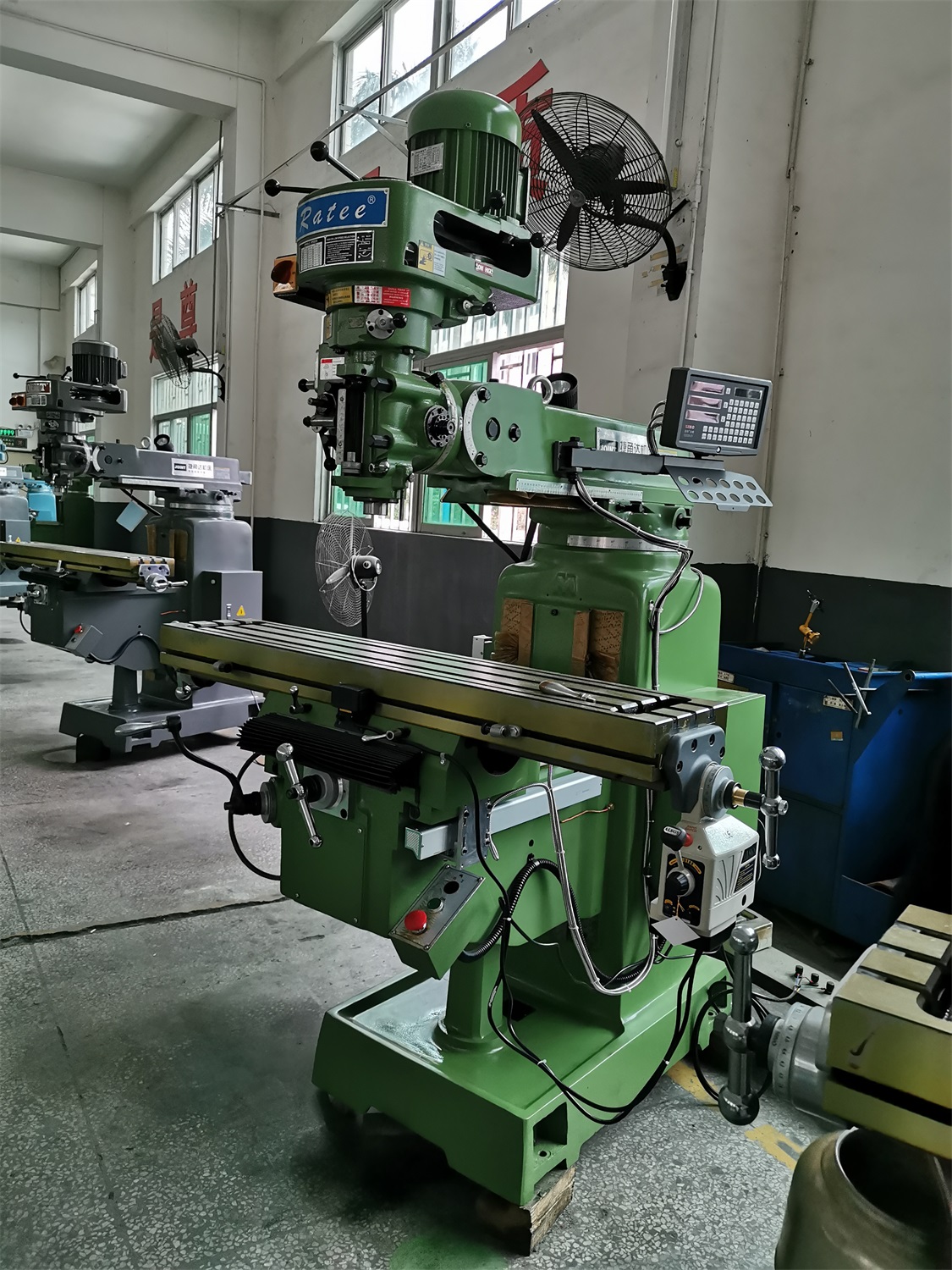

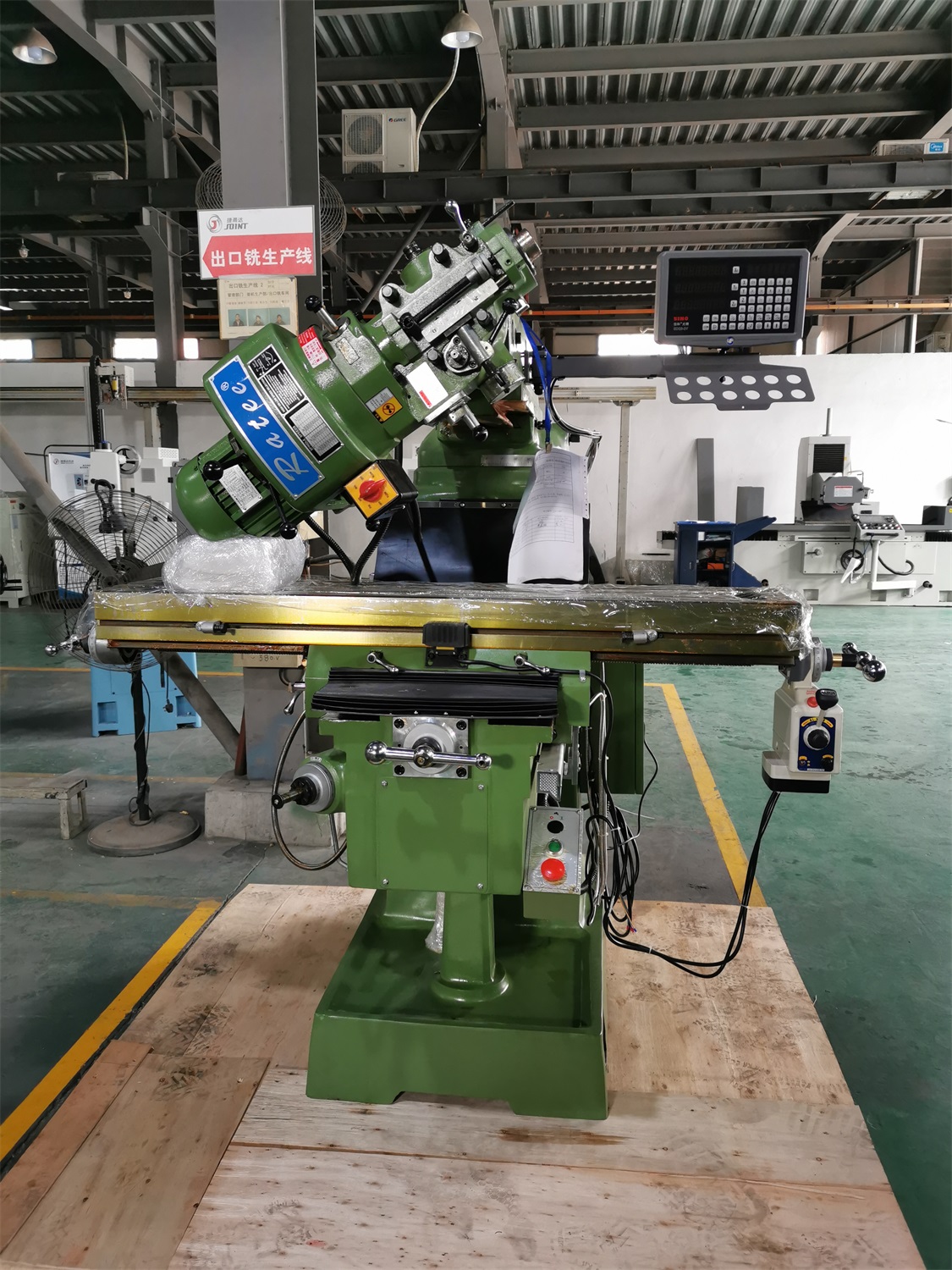

3HP Spindle DRO Turret Milling Machine 1000mm X Axis Travel 4530rpm Images
