High Rigidity Bt40-140 Spindle Vertical Machine Center V85 15000rpm

Brand Name : JOINT

Model Number : VMC-85

Certification : ISO 9001:2015

Place of Origin : CHINA

MOQ : 1 SET

Price : NEGOTIATION

Payment Terms : L/C, T/T

Supply Ability : 1000 SETS/YEAR

Delivery Time : NEGOTIATION

Packaging Details : WOODEN PALLTES / WOODEN CASE

Woking table size : 900*450

Spindle rotation speed : 1000/12000/15000rpm

Spindle motor rate : 7.5kw

X/Y/Z axis travel : 8010/500/500

T slot : 3-18*130

Positioning accuracy : 0.006mm/m

Contact Now

Introduction:


1. This V series CNC milling machine is fast feed, so it is suitable for batch parts with many tools, complicated processing.

2. Mainly processing cabinets, complex curved surfaces, heterosexual parts, disks, sleeves, plate parts, etc.

Product Characteristics:

1. Three axis adopt ball linear guide way or roller linear guide way, rapid feed:48m/min

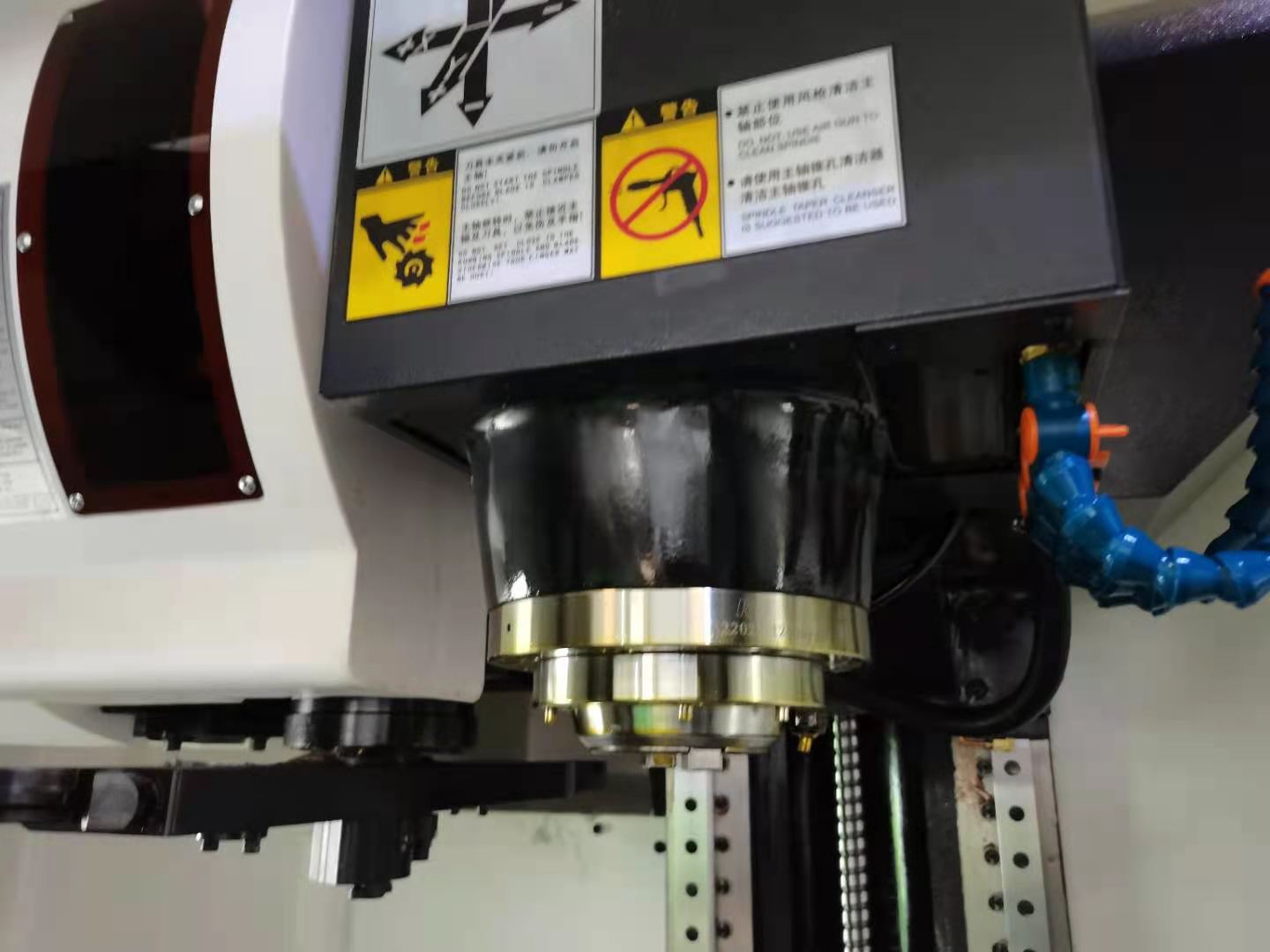

2. The direct-connected short nose high-speed spindle can improve efficiency, reduce tool wear and maximize the transmission efficiency of the spindle motor. Improving processing accuracy and extending spindle life.

3. Equipped the rear chip conveyor with a large flow chip removal system, which can meet the requirements of rapid chip removal.

Specification:

ITEM V85
Table size mm 900*450
X axis travel mm 800
Y axis travel mm 500
Z axis travel mm 500
Distance between spindle and table mm 170~670
Distance between spindle and column mm 524
Spindle rotation speed rpm Belt 10000/ direct 12000*/15000*
Spindle taper BT40-140 shorModelt nose spindle
Spindle motor kw 7.5
T slot size mm 3-18*130
Three axis Linear guide way
X axis rapid feed m/min 48
Y axis rapid feed m/min 48
Z axis rapid feed m/min 48
Cutting feed m/min 15
Positioning accuracy mm/m 0.006
Min. set moving unit mm 0.001
Dimension mm 2450*2535*2660
Weight kg 4200
Load of table kg 500

Standard accessories:
1. Mitsubishi/ Fanuc controller system with AICC2 Function
V65 belt connectin with 10000rpm spindle
2. Fully enclosed cover
3. Pneumatic system
4. Anto lubrication system
5. Work piece coolant system
6. Heat exchange
7. Air gun
8. Water gun
9. Spindle oil coolant
10. 24T Arm type tool magazine
11. Rear flishing
12. Hand wheel
13. RS232 Interface
14. Alarming light
15. Working light
16. Guide way cover
17. Technical documents
18. Operation manual

Optional accessories:
1. Screw type conveyor
2. Chain type conveyor
3. 4 axis Rotary table
4. Coolant through spindle (CTS)
5. Spindle rotation speed can be direct connection with 12000rpm.

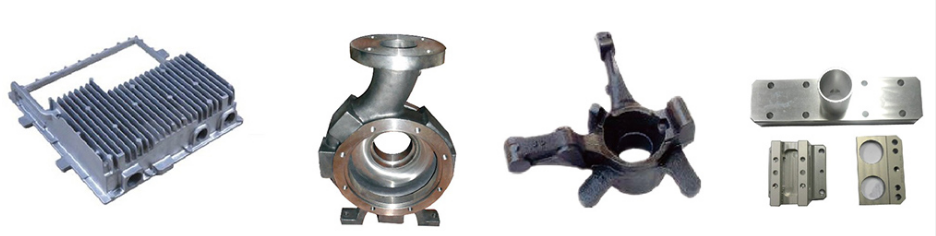

Application Industry:

High Rigidity Bt40-140 Spindle Vertical Machine Center V85 15000rpm

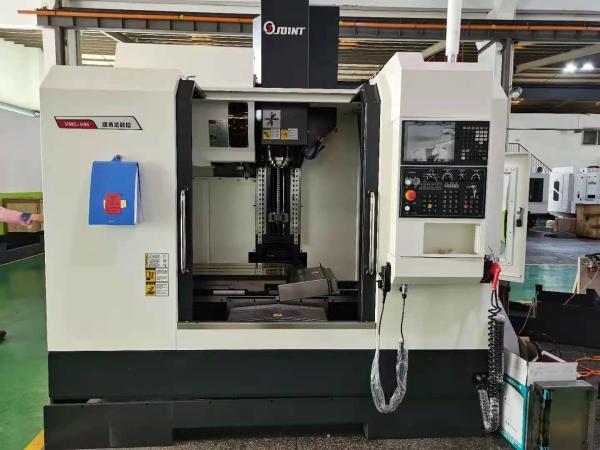

Overview:

High Rigidity Bt40-140 Spindle Vertical Machine Center V85 15000rpm

Package:

High Rigidity Bt40-140 Spindle Vertical Machine Center V85 15000rpm

High Rigidity Bt40-140 Spindle Vertical Machine Center V85 15000rpm
