Features
1. X,Y,Z axis are linear way, standard feed speed is 10m/min. CM650B also can be specially matched to 24m/min.
2. Through the finite element analysis, adopt high quality Resin sand casting, accuracy stability and high rigidity, keep processing stability under high speed.
3. Spindle box adopt flange type structure, improve spindle cutting rigidity and enhanced spindle anti-collision performance.
4. The key components such as couplings, bearings, and ball screws are from Germany. Japan and Taiwan brand precision high quality spare parts, ensure high stability quality of machine.
High Quality Casting, Fast and Stable
CM series adopts high quality castings and beam column gantry frame design to ensure overall machine is suitable for rapid and stable operation. With 18000/24000/30000/40000 rpm motorized spindle to meat all kinds of high specular engraving and milling. Can widely used in one-time precision mold rough finishing, mold copper electrode, aluminum parts machining, shoe mold manufacturing, mask machine mold, fixture machining, watch industry.
Specification
| Model |
CM870C |
CM870 |
| Table size |
mm |
800*600 |
860*720 |
| X axis travel |
mm |
700 (With ATC 630) |
720 (With ATC 670) |
| Y axis travel |
mm |
800 |
800 |
| Z axis travel |
mm |
330 |
330/ 310 (BT30 spindle) |
| Gantry width |
mm |
760 |
800 |
| Spindle taper |
|
ER25/ BT30* |
ER25/ BT30* |
| Spindle rotation speed (Motorized spindle) |
rpm |
24000/ 18000* |
24000/ 18000* |
| Spindle motor |
kw |
5.5/ 7.5* |
5.5/ 7.5* |
| Three axis servo motor |
kw |
0.85 |
1.3 |
| Distance between spindle and table |
mm |
ER25: 80-410
BT30: 110-440* |
ER25: 50-380
BT30: 85-360* |
| T slot size |
mm |
5-18*115 |
5-18*160 |
| Three axis rapid feed |
m/min |
15 |
15 |
| Three axis cutting feed |
m/min |
8 |
8 |
| Dimension (L*W*H) |
mm |
1980*2400*2350 |
2560*2540*2880 |
| Weight |
kg |
3800 |
4300 |
| Max. load of table |
kg |
400 |
800 |
Standard accessories
1. LNC/ SYNTEC controller system
2. Fully enclosed cover
3. Pneumatic system
4. Anto lubrication system
5. Work piece coolant system
6. Three axis inner encoder feedback system
7. Heat exchange
8. Spindle oil coolant
9. Hand wheel
10. Network transmission Interface
11. Alarming light
12. Working light
13. Guide way cover
14. Technical documents
15. Operation manual
Optional accessories
1. ATC
2. Rotary table
3. Tool setters
Product Tags:
|
|

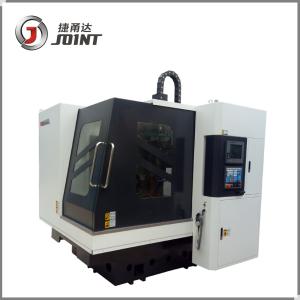

Vertical 5.5kw CNC Engraving Cutting Machine ER25 Spindle For Metal CM870 Images
|
